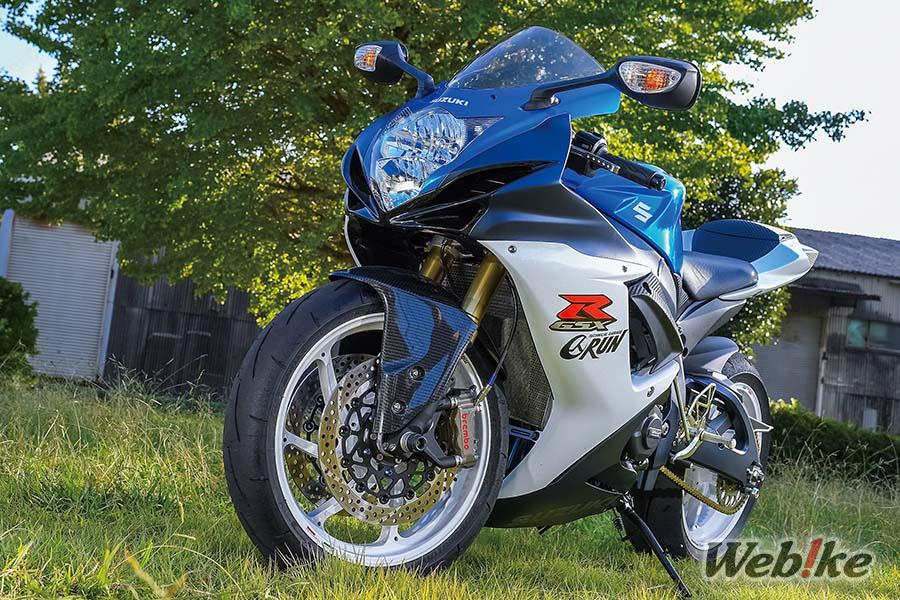

TG-RUN's GSX-R750

"This model has the best size, position, and engine, and if the most current electronic control system is added to it, it will be a very good racing spec machine," says Mr. Sugimoto of Technical Garage RUN regarding this TG-RUN Complete based on the GSX-R750 2012 L2 model. The weight reduction of various parts and the high quality of operation and looks were customized in the same way as their "Version Up Complete" (the name given to TG-RUN full custom machines) menu, and we can honestly say that for fans of the GSX-R750, this is the perfect bike. The GSX-R750 L2, which is the base for this custom, was the successor to the fully modified L1 model from the previous year; in comparison to the L0 from one more year prior, the L1 has narrower front and rear overhangs and the wheelbase is 15mm shorter to improve mobility.

The GSX-R750 was released from racing regulations in 2004 when Superbike regulations were changed from 750 to 1000cc, but from the 2004 K4 model, it shared its base with the GSX-R600, adopting the same compactness. The R750 basically just changed the racing-based 600 into a 750cc engine in order for its advantages to be experienced on the street. Mr. Sugimoto says that the compact size and the engine's ability to accelerate are the most notable qualities of the past GSX-R models. As mentioned at the beginning of this article, if there were a model in this series (GSX-R750 L1 onward) with an updated electrical system, it would be so highly regarded that it would in a sense be ideal.

However, the stock model is designed so that many different people can ride it under a variety of conditions. While respecting this, TG-RUN's "Version Up Complete" customs enhance the performance desired by each owner. In order for the input from the rider to be more reliably transmitted to the chassis the step is changed from a cast/pressed product to a billet product made of a different material to increase rigidity. Brembo master cylinders are chosen for their ability to more finely adjust the input and to provide the rider with a better feel for the operation of the brakes. Like the master cylinders, Brembo brake calipers are chosen for their high effectiveness and operability. Ohlins suspensions are similarly chosen because they eliminate the tediousness of operation, reduce bouncing and unnecessary back-and-forth movement of the bike, and allow the rider to concentrate on riding, thereby reducing fatigue. Marchesini forged wheels are used for their lightweight forged wheel characteristics, as well as their ability to rotate in a perfect circle. And all of these parts have the advantage that they can be overhauled by TG-RUN.

This bike is packaged with these recommended parts that are all backed by the shop's know-how. The master cylinders, step position, and suspension can be set up to suit the owner. This means that the bike can be optimized for whoever purchases it. With all of these advantages combined this is definitely a machine that any fan of this model would want to get their hands on.

Handle

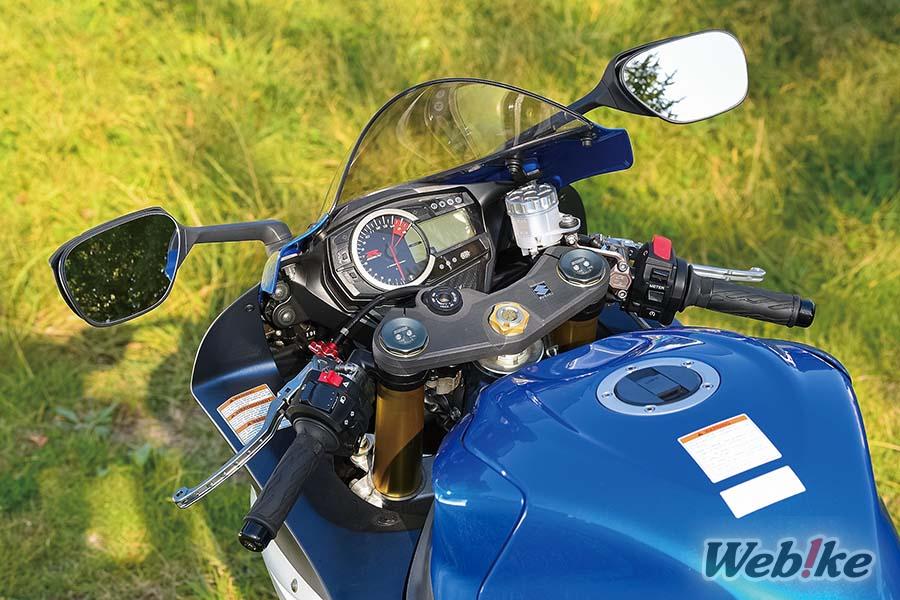

The exterior, including the windshield, as well as the stem area and gauges are stock, but as you can see, they are in very good condition. This bike is a good choice for those who want to enjoy a now rare 750cc straight-4 engine sports bike.

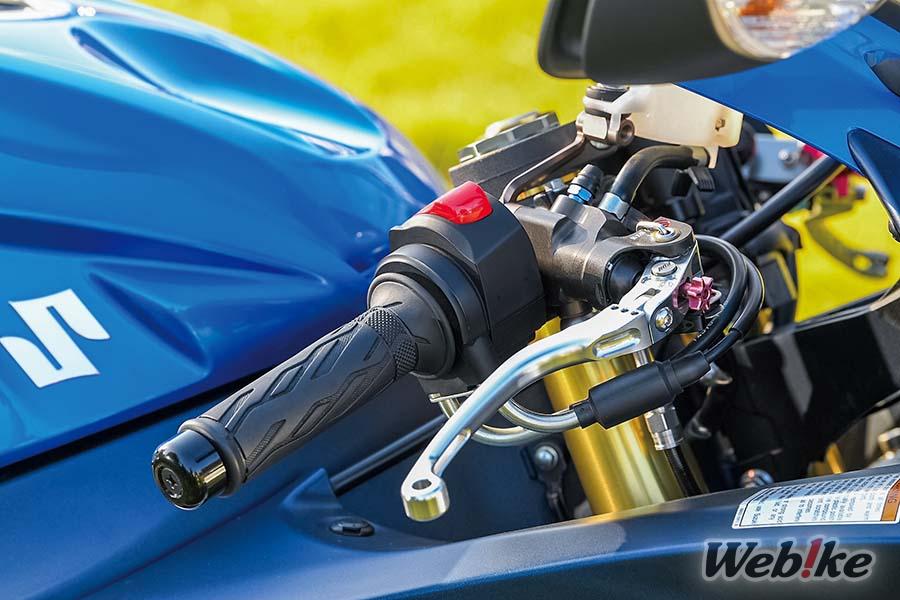

The front brake master cylinder is Brembo Racing with a K-Factory foldable lever, and TG-RUN's original pivot pin with hook to prevent dislodgement. The wire clutch lever has been replaced with a ZETA Flight Lever.

Bodyworks

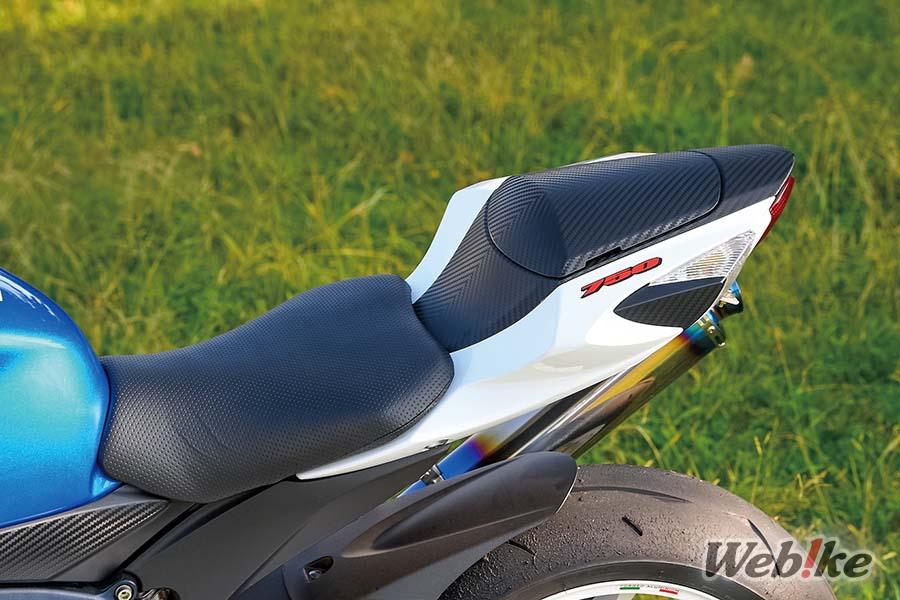

The rider's seat has been replaced with a TG-RUN Sport & Comfort Seat to enhance comfort and maneuverability.

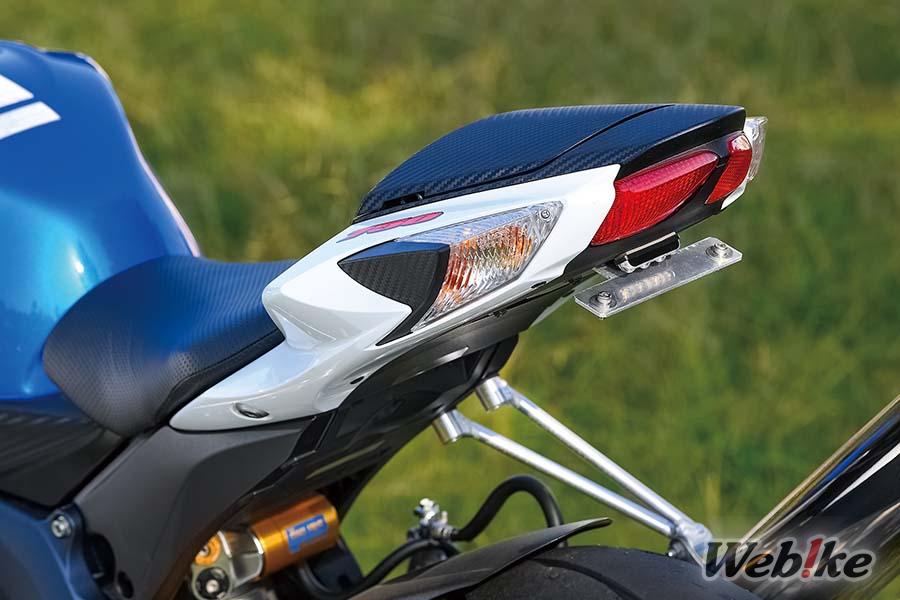

The rear area with built-in turn signals is an original fender eliminator kit. The pillion seat cover is a stock option.

Engine

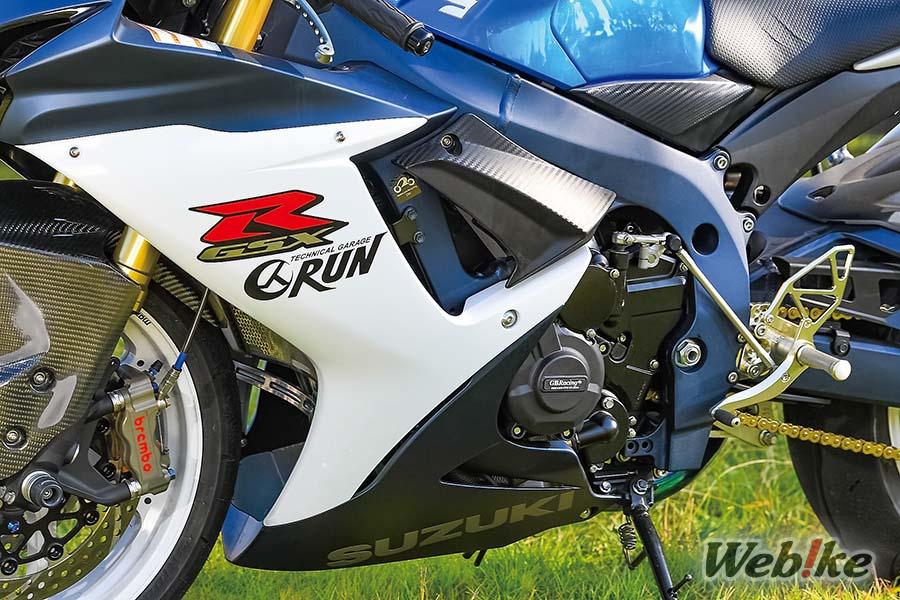

The 749cc engine and aluminum twin-spar frame are stock but in good condition, and a TG-RUN Radiator Core Guard and GBRacing FIM Approved Engine Cover (for '06-'20 models) have been added.

Chassis

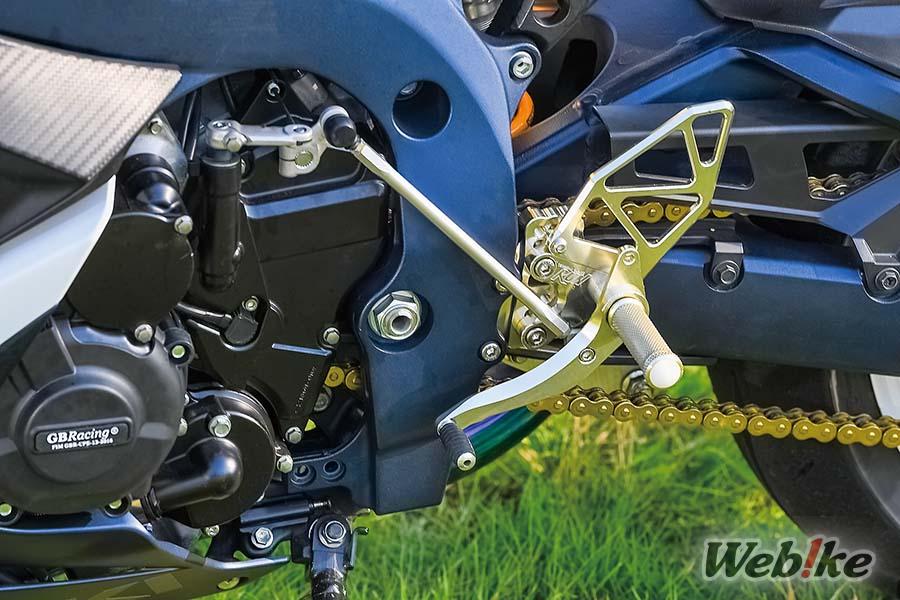

The rearsets kit is a TG-RUN original with four bar positions.

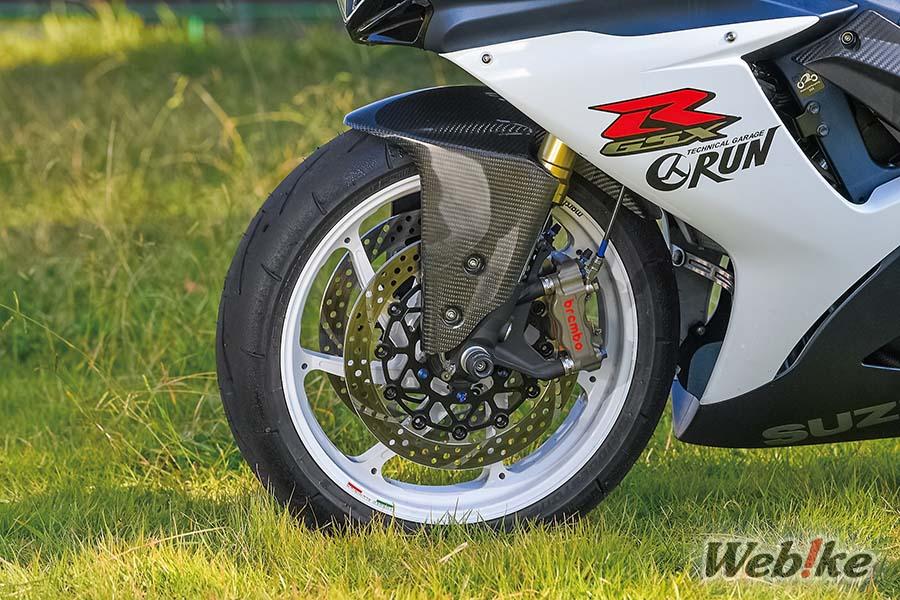

The front forks are stock Showa BPF (Big Piston Forks). The front fender is by Magical Racing and the front brakes are Brembo Racing Radial CNC 4P Calipers with Sunstar Works Expand Discs.

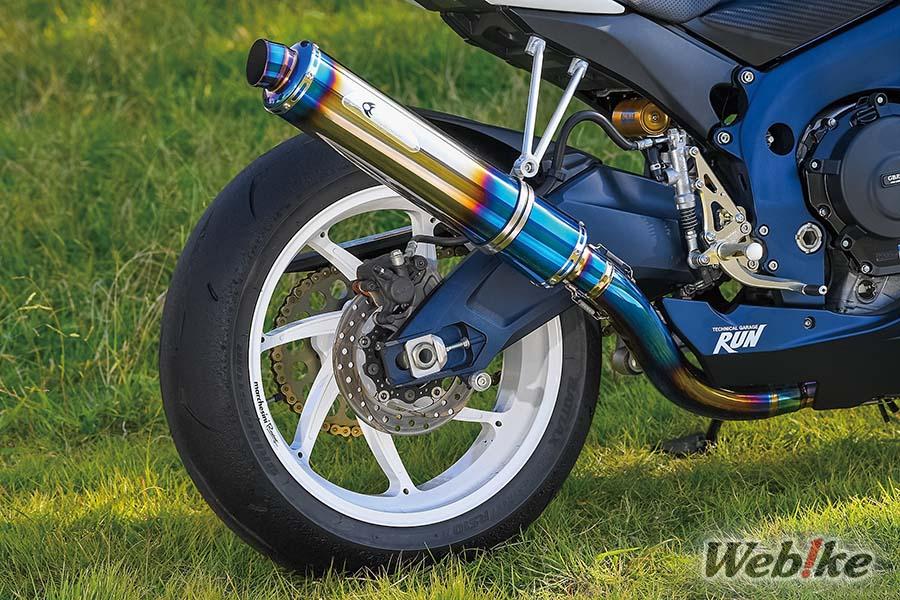

The rear brakes are stock calipers and Sunstar Works Expand Discs. The exhaust system is a TG-RUN x K-Factory Full Titanium Exhaust.

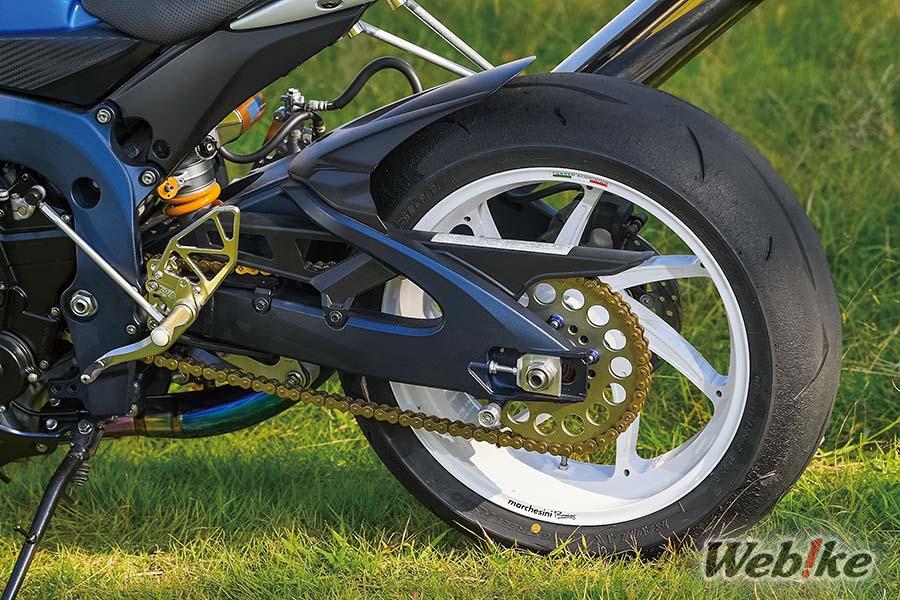

The rear suspension is an Ohlins TTXGP2018 (SU469), mated to the stock swingarm. The front and rear wheels are Marchesini Forged Aluminum M7RS with 3.50-17/5.50-17 sizes.

Gallery

Specifications

Part	Details
Engine	GBRacing Engine Cover Set TG-RUN Radiator Core Guard
Exhaust	TG-RUN x K-Factory Full Titanium Exhaust
Brake	brembo Racing Radial Brake Master Cylinder (19 x 18) K-FACTORY Billet Lever Standard 20 Type R brembo Racing Radial CNC 4P Caliper SUNSTAR Works Expand Front Disc SUNSTAR Works Expand Rear Disc
Wheels	MARCHESINI Forged Aluminum Wheels M7RS Genesi Front and Rear Set
Suspension	OHLINS Rear Suspension TTX-GP 2018
Steps	TG-RUN Original Rearsets
Handle / Steering	ZETA Pilot Lever Clutch
Seat	TG-RUN Sport & Comfort Seat
Bodyworks	Magical Racing Front Fender
